Eleven Lab

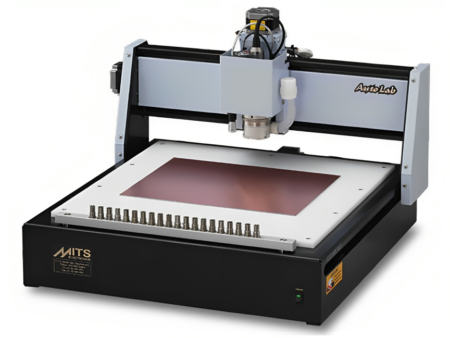

The lowest cost of the MITS lineup

Ideal for budget minded individuals or companies. This machine is capable of making great looking double sided boards!

The vacuum table option employs the porous resin which holds tightly in the whole area of the surface.



Low-cost, wide range table size, XYZ triple-axes control, high resolution, standard camera monitoring system

Suitable for processing normal PCB.

Spindle Speed

41,000 rpm

Manual Tool Change


Tool change is done manually by the user. Uses an easy-to-use lever to remove and insert the tools.
Tool change can be done without any complicated action such as thread fastening.

Cabinet (requires assembly) is available as an optional item

Well designed and easy to perform maintenance.


Standard camera monitoring system

Magnify the surface of the board and display on a monitor. You can easily adjust the right position while viewing display.
(Maximum useful magnification depends on the size of the screen)

Fiducial positioning camera

The Color micro-scope can be installed beside the head assembly of the PCB prototyping Machines.
Easy plug & play with USB connection presents 30x / 60x display of the surface of the board.

30 x

This is the useful option for the alignment

Microscope Features

30x (15″ monitor)

  • 1,300,000 pixels CMOS
  • 640 x 480 resolution (On Design View)
  • super luminosity LED x 8 (modulate light)
  • USB interface

*The right side 40 mm of milling area is out of range of view field.

Vacuum table

The vacuum table option employs the porous resin which holds tightly in the whole area
of the surface. This stabilizes the substrate tightly without causing twisting or warpage.


Minimum pattern width (mm) 0.1 (4 mil)
Minimum milling width (mm) 0.1 (4 mil)
Working area (X/Y/Z) (mm) 229 x 320 x 10 *7 (30*6)
(9.0″ x 12.6″ x 0.4″)
Table size (mm) 296 x 396 (11.6″ x 15.6″)
Control axis X, Y, Z
Control motor Stepper Motor
Resolution (µm) *3 0.625 (0.0246 mil)
Maximum Travel Speed (mm/sec.) *1 55 (2.17″)
Spindle speed min-1 (rpm)
Spindle motor
5,000 – 41,000
DC Spindle
Drilling (mm) 0.2 – 3.175 (8 – 125 mil)
Maximum drilling cycle (cycles/min.) *2 55
Maximum thickness of processed material (mm) *4 10 (0.4″)
Tool change Manual / Single step tool change
Milling method Absolute No
Incremental Yes
Compressed air (Mpa)
Power consumption 100 – 240 V, 50-60 Hz, 150VA
Machine dimensions
W x D x H (mm)
435 x 575 x 430 (17.2″ x 23″ x 17″)
With cabinet: 500 x 580 x 450 (19.7″ x 23″ x 18″)
Machine weight (kg) Approx. 28 (62 lbs)
With cabinet: Approx. 38 (84 lbs)
Interface One USB or one RS-232C port
Standard equipment Fiducial positioning camera 30x (USB)*5
Software: EASY CAD, Conversion & CAM
Options and accessories Cabinet (requires assembly)
Vacuum table
Vacuum cleaner
Video manual
Starter kit
Connecting Cable (RS232C / USB)
Magnifying glass 10x
Extension hose for Vacuum cleaner

Tools: End mills
Drill bit
Router bit


Eleven Lab +P

Equipped with higher-quality pressure foot which provides better capability of the milling width consistency and the vacuum cleaning efficiency.

The pressure foot is the same one as the Auto Lab and FP-21T.

  • Depth screw provides more precise adjustment of milling width.
  • Tri-point pressure foot provides more consistency of milling width.
  • Cylinder shape surrounding the tool bit increases the efficiency of collecting particles produced during milling.
