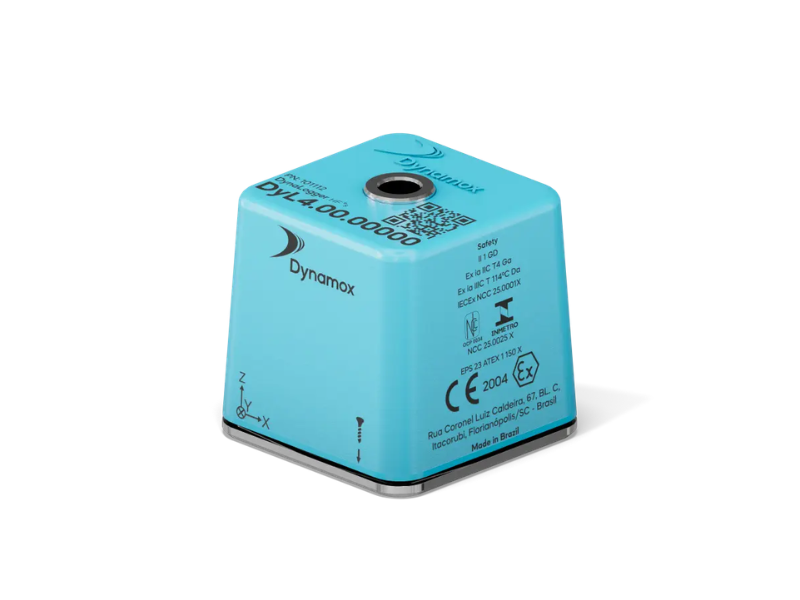

DynaLogger HF+: Wireless Vibration and Temperature Sensors

Wireless vibration and temperature sensors with BLE 5.3 communication with metallic base. Spectral analysis and telemetry capability up to 13.3kHz. Continuous minute by minute monitoring.
The DynaLogger HF+ is designed to identify failure mode symptoms or defects in machinery and equipment in a wide variety of field applications. Due to its broad frequency spectrum, the HF+ delivers complete triaxial vibration and temperature monitoring for low to high-speed equipment. In addition, the solution features an online platform, with no local installation required, with several tools that assist in data analysis and enable constant monitoring of asset health.
The HF+ DynaLogger has two monitoring modes: spectral/waveform and telemetry. Configurable telemetry monitoring in bands includes several metrics such as acceleration, velocity, and displacement in RMS, peak, peak to peak, and crest factor, as well as skewness, kurtosis, and contact temperature. In spectral monitoring, different tools can be used: spectrum, waveform (linear, circular and orbital), frequency filters, cepstrum, spectral envelope (demodulation), autocorrelation and multimetrics.



Wireless Monitoring Solution
  • Compact sensor with wide frequency range.
  • Long battery life.
  • High resolution in frequency and amplitude.
  • Over 40 telemetry metrics that can be applied in different frequency bands up to 13 kHz (under developing ).
  • Low speed applications (less than 10 RPM).
  • Sensor with low spectral noise.
  • Truly simultaneous triaxial measurement.
  • Remote sensor updating.


Main assets monitored
  • Motors
  • Pumps
  • Fans
  • Gearboxes
  • Rollers and Brakes
  • Compressors and chillers
  • Wind turbines
  • Bearings in assets with high and low speed


DynaLogger HF+: Wireless Vibration and Temperature Sensors Datasheet
