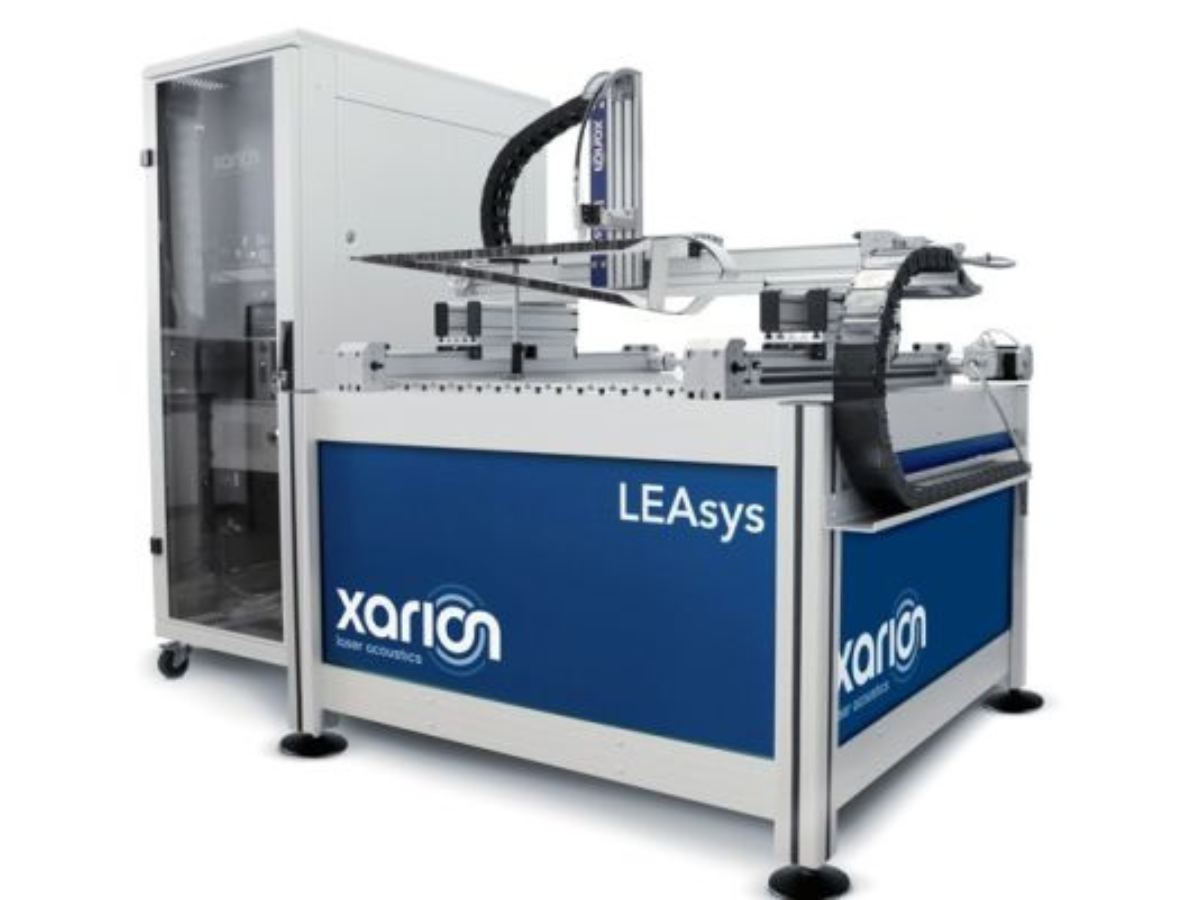

NDT Scanning System – LEAsys

XARION’s LEAsys turnkey ultrasound inspection system is the perfect tool for R&D laboratories or research institutions engaged in the non-destructive testing of composites, metals, and adhesive joints. The integrated NDT scanner solution combines the innovative laser-excited ultrasound technology (LEA) and the patented Optical Microphone with a high-resolution x-y scanner table and real-time data analysis software. It enables contact-free ultrasonic testing at high resolution and high speed!

Enquiry

Features

Hardware features

  • Excitation: Variable repetition rate laser up to 4 MHz
  • Detection: Eta600 Ultra optical microphone with 4 MHz bandwidth
  • Step size: Resolution down to 10 µm or scanning speed up to 1 m/s
  • Scan area: 0.5 m x 0.5 m (LEAsys S); larger variants available
  • Data acquisition: 16-bit resolution, 80 MS/s

Software features

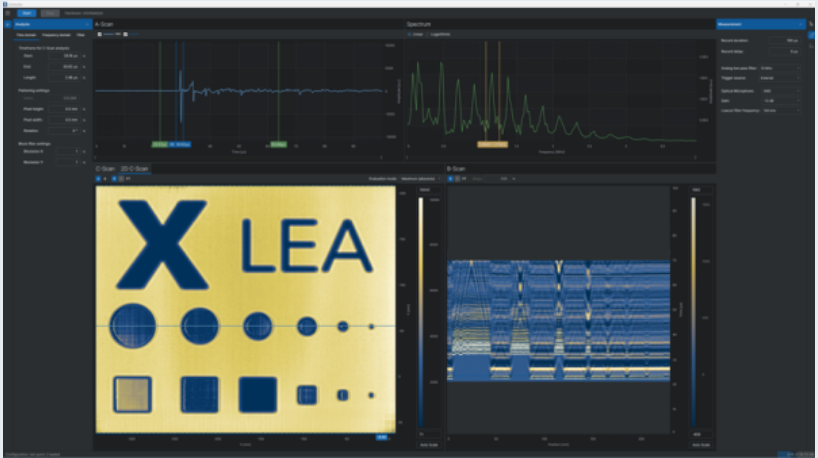

  • Graphical user interface for control and data analysis
  • Real-time display of A-, B-, and C-scans in 2D and 3D
  • Integrated spectral analysis and F-scan visualization
  • Powerful signal processing with FIR and wavelet-based filters
  • Programmable API for creating automated measurement and analysis routines
  • Comprehensive data export capabilities

Publications

Laser-Excited Acoustics for Contact-Free Inspection of Aeropace Composites

Material characterization via contact-free detection of surface waves using an optical microphone

Thickness measurement via local ultrasonic resonance spectroscopy

Ultrasound inspection of spot-welded joints

Downloads

XARION+LEAsys Brochure
