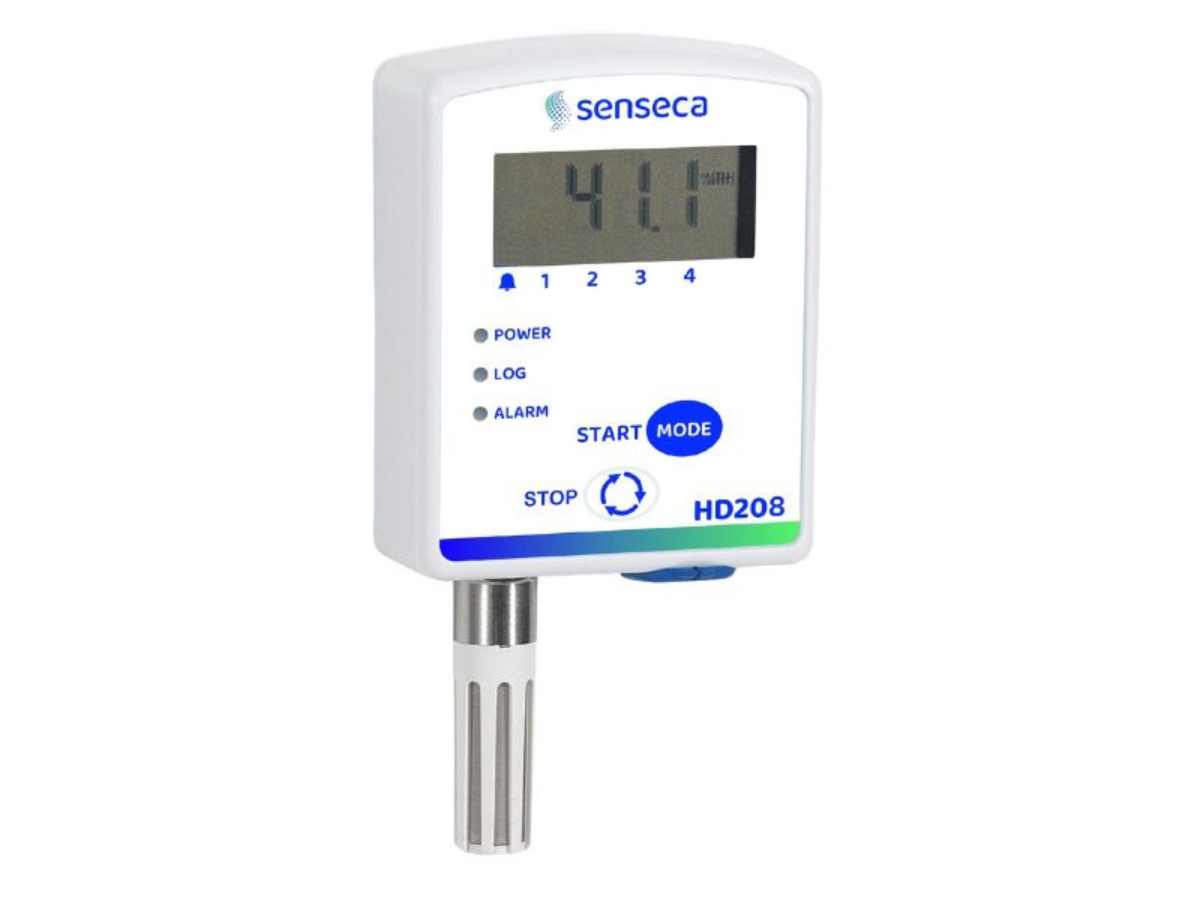

HD208 SERIES T / RH / DEW POINT MONITORING
Humidity, Temperature
Compact data logger: monitoring temperature, relative humidity (RH) and dew point temperature. MKT – Mean Kinetic Temperature calculation. Optional with software according to FDA 21 CFR part 11.
The data loggers of the series HD208 are compact instruments for monitoring temperature, relative humidity (RH) and dew point temperature. Useable in various models (with or without LCD display):
- with 1 channel for temperature only
- with 1 channel for temperature and relative humidity
All models can be supplied with or without LCD display
The logging function is extremely versatile; logging can be started and stopped manually, automatically or delayed.
For each quantity detected, two configurable alarm thresholds can alert the user if the measure exceeds the configured parameters.
The instrument automatically generates, after logging, a PDF report with charts of the variables collected and a CSV file with all measurements logged.
Specifications
| Protection class: | IP64 |
|---|---|
| Power supply: | (Li-SOCl2), size AA, 2 pole Molex 5264 connector. |
| Battery life: | 2 years typical, with logging interval 30 s |
| Weight: | 150 g approx. |
| Instrument operating T / RH: |
-40…+75 °C 0…100 %RH non condensing |
| Logging interval: | 1, 2, 5, 10, 15, 30 s 1, 2, 5, 10, 15, 30, 60 min |
| Storable quantities: | According to the model: • Temperature: internal sensor, fixed external probe or exter-nal sensor with cable; Mean Kinetic Temperature (MKT) cal-ulated. • Relative Humidity. • Dew Point. • Battery Voltage. |
| Memory: | Flash memory with circular management or stop logging when full |
| PC connection: | USB port with mini-USB connector |
| Alarms: | Two alarm thresholds (configurable) for each measured quantity |
